Description
OPTIONAL OPERATION

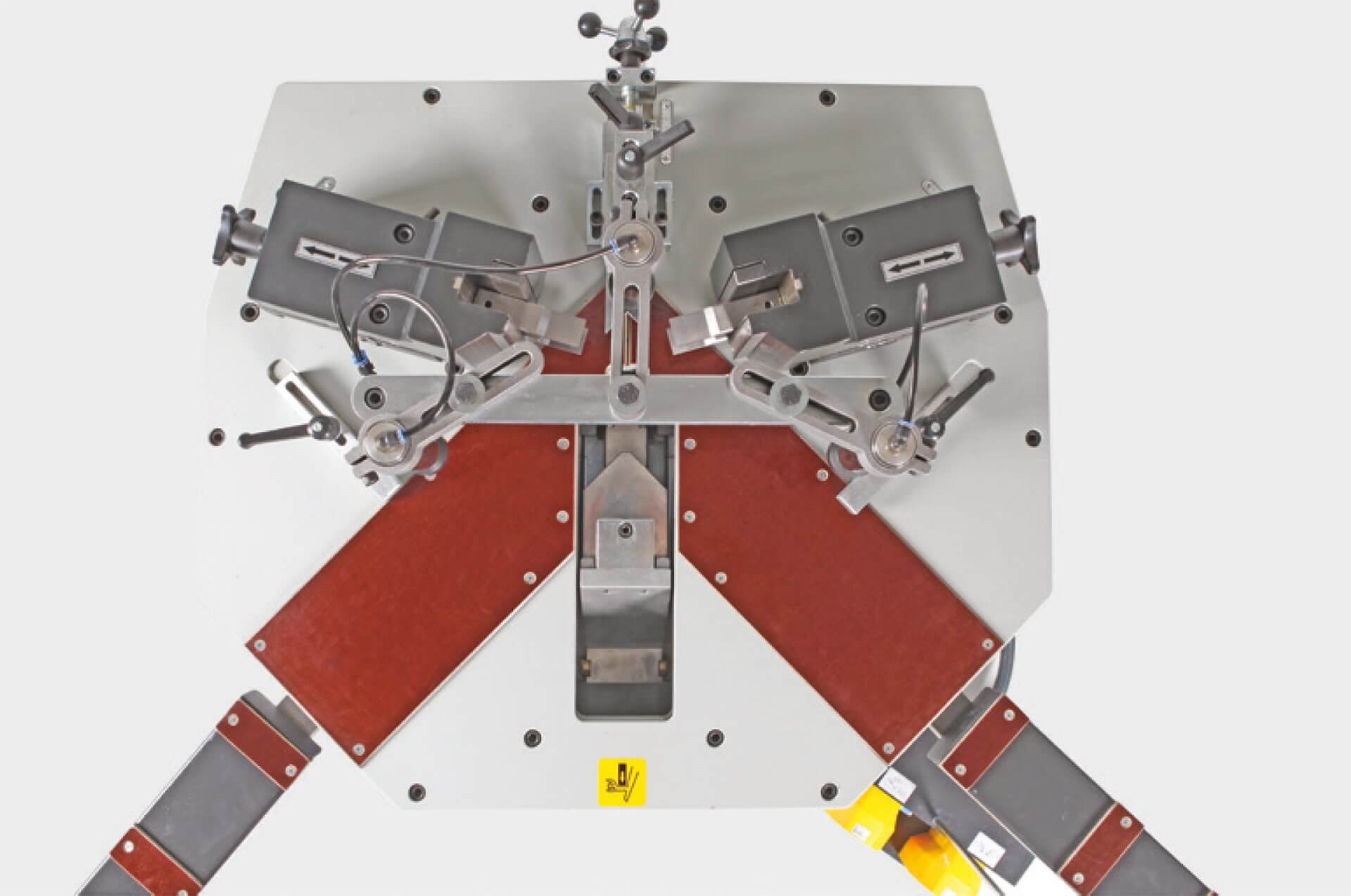

Press heads, which are equipped with 2 universal blades, are adjustable in 3 axes. This offers ease of use.
PRESS REINFORCEMENT SYSTEM
Thick aluminum joinery profiles increase the power factor through 6-bar compressed air and a custom-made mechanic system and helps to easily drill profiles.
CENTRAL PRESSURE SYSTEM
It puts simultaneous pressure on left and right heads, and makes sure a profile welded in a corner is exposed to equal pressure from both sides, and it does not slip.
GENERAL PROPERTIES
- Pneumatic working principle
- 2 universal heads supplied with knifes adjustable in 3 axes
- Pneumatic crimping via lever system ensures synchronous movement of the punching heads
- Universal hydropneumatic drop-away stop for easier handling of the frames
- Horizontal and drop-away wedge-shaped clamp ensures correct alignment and gripping of the profiles which are mated during the crimping phases
- 3 vertical pneumatic clamps ensure correct positioning and gripping of the profiles in the machine

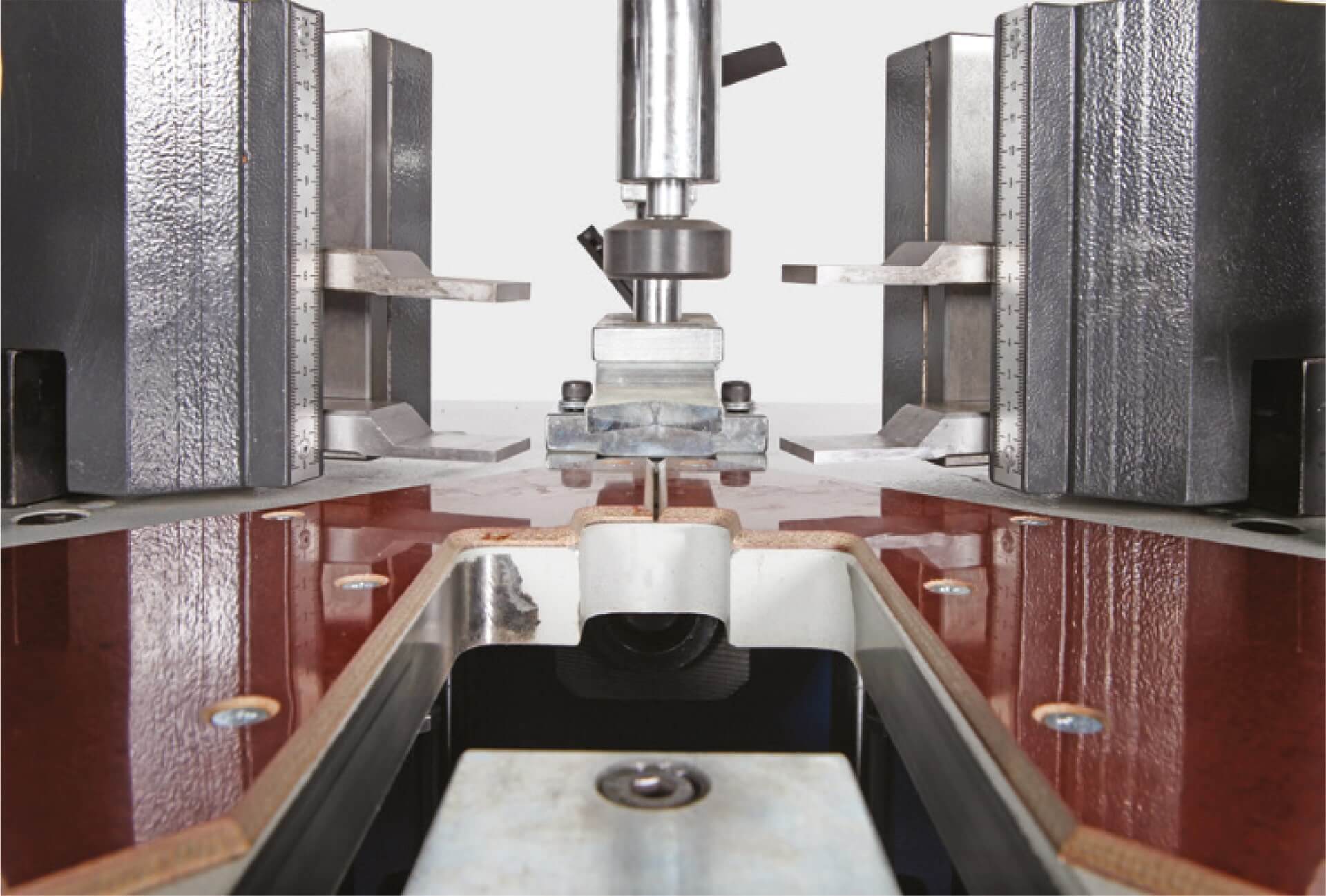

- Crimping head with knife kit ensures fine position adjustment; it features a quick clamping / unclamping system and is fully adaptable to any series of workable profiles
- Alignment of frame with side stops
- Hydropneumatic locking of the stop
- 2 footswitch control
- 2 pairs of standard crimping knives 4/6 mm
- Supporting arms for profiles (right & left)
- Particular care has been taken over the safety
- measures, both mechanical and electrical
TECHNICAL SPECIFICATIONS
- Air pressure : 6-8 Bar
- Hydraulic Printing : 100-120 Bar
- Pressing Power : 3250 kgf
- Minimum Profile Height : 60 mm
- Maximum Profile Height : 140 mm
- Maximum Profile Width : 140 mm
- Machine Height: 1350 mm
- Machine Length : 1000 mm
- Machine Width : 1000 mm
- Machine Weight : 320 kg
