Description
HIGHLIGHTS
- Easy glass loading with robotic structure
- Glass loading ability from both sides
- Easy integration to existing our any other brand of glass cutting machines
- Extremely robust structural design
HOW IT WORKS?

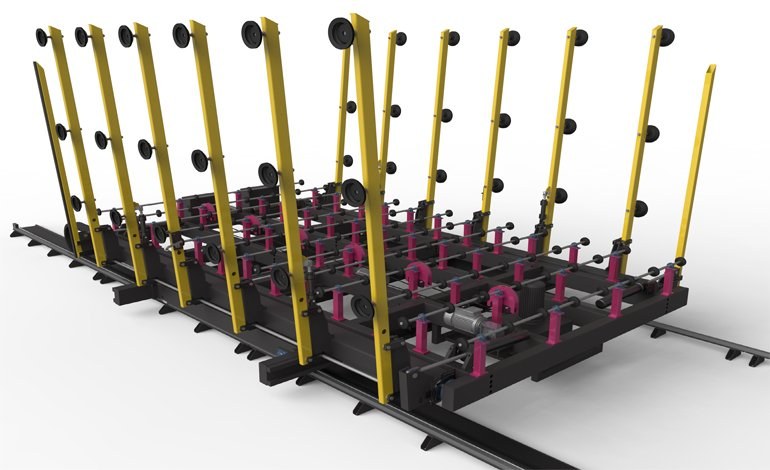

Loading of the glass is performed automatically by control panel. The loading system is able to load glass sheets from both sides and from different glass racks according to glass sizes and thicknesses. The loading arms are equipped with suction cups and the mechanism operated by hydraulic system.
FEATURES
- Both side glass loading
- Movement in x and y axis
- Glass loading from 1000mm depth
- Remote technical assistance
TECHNICAL PARAMETERS |
FYM3700 |
FYM6032 |
|---|---|---|
| Maximum glass size | 3700×2550 mm | 6000×3210 mm |
| Glass thickness | 3-19 mm | 3-19 mm |
| Standard rack station | 3 left + 3 right | 3 left + 3 right |
| Maximum rack station | 5 left + 5 right | 5 left + 5 right |
| Glass loading depth from the rack | 400 mm (opt. 1000 mm) | 1000 mm |
| Position accuracy | ± 0.5 mm | ± 0.5 mm |
MACHINE DIMENSIONS |
FYM3700 |
FYM6032 |
|---|---|---|
| W | 5000 mm | 8000 mm |
| L | 4600 mm | 7200 mm |
| H | 2650 mm | 3400 mm |
| H1 | 900 mm | 900 mm |
