PROD-LC22

FIBER LASER TECHNOLOGY

PROD-LC22 – Series uses two-dimensional drawings over the flat plate by moving the focused infrared light along the programmed pathways to cut. The system moves the laser light with fiber optic cable to the focuser cutting head, which moves on the fixed sheet metal. The cutting process occurs by melting the material in the area, where high-power laser light focused in very small diameters allows this to occur. Different gases are used to eject melted material from the surface of plate, according to type of materials. These gases exit from the nozzle, where the laser light exists and control the quality of process.

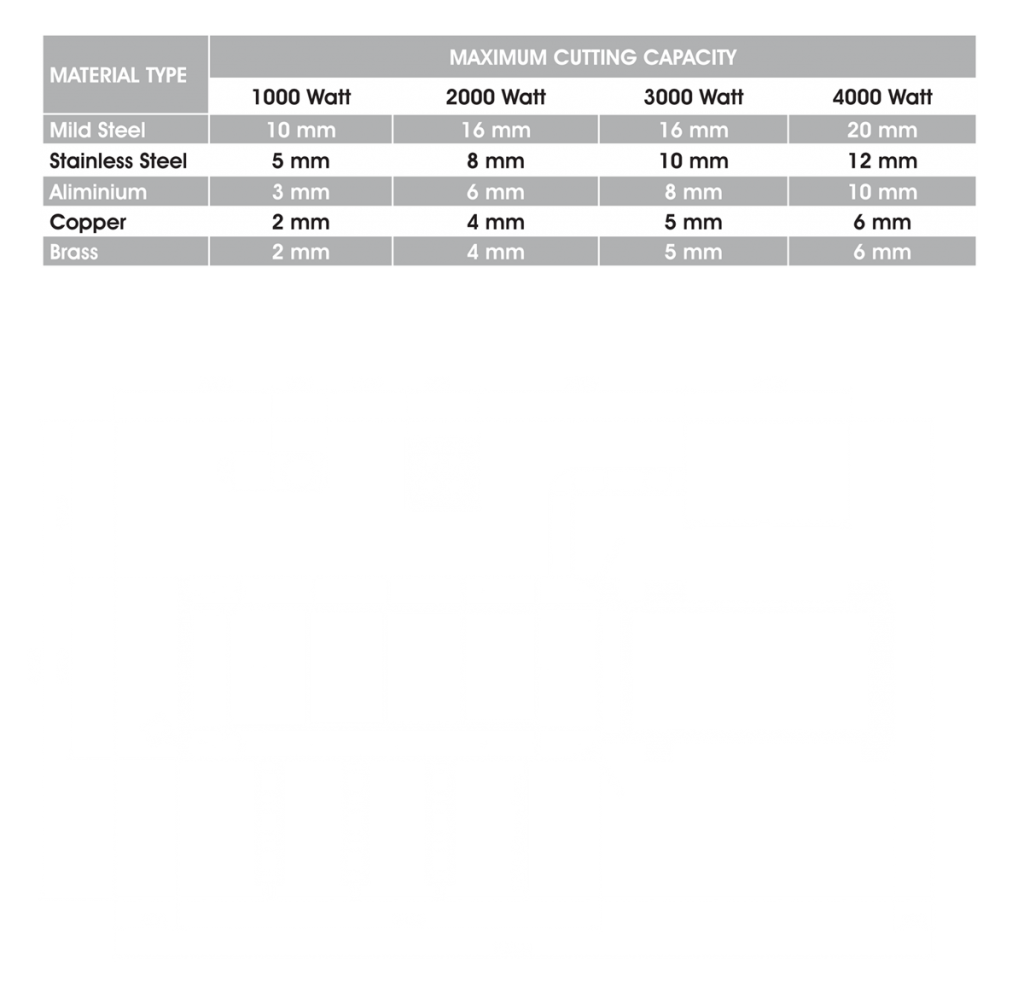

Technical specifications

  • Laser Power : 1000, 2000, 3000, 4000,Watt
  • Cutting head: Precitec Light Cutter (Optional Precitec Pro Cutter)
  • Focusing Lenses: 150mm
  • CNC Control Unit: Beckhoff 19’’ TFT – Windows 10
  • Servo Motors: Beckhoff
  • Rack and Pinion: WITTENSTEIN
  • Nesting Software: LANTEK Expert Cut II
  • X Axis ( Rack & Pinion ): 3048 mm ( 120’’ )
  • Y Axis ( Rack & Pinion ): 1524 mm ( 60’’ )
  • Z Axis ( Ball Screw ): 100 mm ( 3.93’’ )
  • Rapid Traverse ( X and Y Axis ): 110 m / min
  • Vector Speed: 140 m / min
  • Acceleration: 1.2G ( 12m / s2 )
  • Feed Rate: Programmable up to 50 m/min
  • Absolute Positioning Accuracy: ± 0.02 mm
  • Repeatability: ± 0.02 mm
  • Transfer Table: Motorized – Automatic Exchange
  • Max. Load Capacity: 1000 kg for each table
  • Automatic Nozzle Cleaning and Calibration: Standart
  • Fume Extractor: Optional 2500 m3 / hour

Categories: ,


Description

IMPRESSIVE CUTTING SOLUTIONS

PROD-LC22 fiber laser cutting offers the best solution to the user for cutting quality, precision, high cutting speed and low cost in cutting of fine material.

HIGHT CAPACITY UTILITY

PROD-LC22, is equipped with an accurately machined, highly dynamic bridge structure combined with precision rack and pinion technology

GENERAL PROPERTIES

  • Precise and ease of processing both large and small size formats.
  • High speed and high precision servo motion system.
  • No repositioning of plate ensures optimum accuracy.
  • Fiber optic laser delivery system.
  • Simple operator interface and cutting database.
  • CNC controlled hydraulic lift-up dual shuttle table.
  • Easy accessible remote diagnostic functions.
  • Long lens life because of lens protection.
  • High speed low cutting cost in thin sheet metal cutting.
  • Easy processing of copper titanium and brass.
  • Lower cooling capacity requirements with reduced energy consumption, due to highly efficient fiber laser source.
  • Perfect beam quality and long term power stability.
  • Long cutting lens life, thanks to protective windows.
  • More than 100.000 hours diode module life.
  • Long life rigid machine design.
  • Fibre delivery system significantly reduces consummables over the life of the system.

TECHNICAL SPECIFICATIONS

  • Laser Power : 1000, 2000, 3000, 4000,Watt
  • Cutting head: Precitec Light Cutter (Optional Precitec Pro Cutter)
  • Focusing Lenses: 150mm
  • CNC Control Unit: Beckhoff 19’’ TFT – Windows 10
  • Servo Motors: Beckhoff
  • Rack and Pinion: WITTENSTEIN
  • Nesting Software: LANTEK Expert Cut II
  • X Axis ( Rack & Pinion ): 3048 mm ( 120’’ )
  • Y Axis ( Rack & Pinion ): 1524 mm ( 60’’ )
  • Z Axis ( Ball Screw ): 100 mm ( 3.93’’ )
  • Rapid Traverse ( X and Y Axis ): 110 m / min
  • Vector Speed: 140 m / min
  • Acceleration: 1.2G ( 12m / s2 )
  • Feed Rate: Programmable up to 50 m/min
  • Absolute Positioning Accuracy: ± 0.02 mm
  • Repeatability: ± 0.02 mm
  • Transfer Table: Motorized – Automatic Exchange
  • Max. Load Capacity: 1000 kg for each table
  • Automatic Nozzle Cleaning and Calibration: Standart
  • Fume Extractor: Optional 2500 m3 / hour
