PROD-MMC

CNC PLASMA CUTTING SYSTEMS

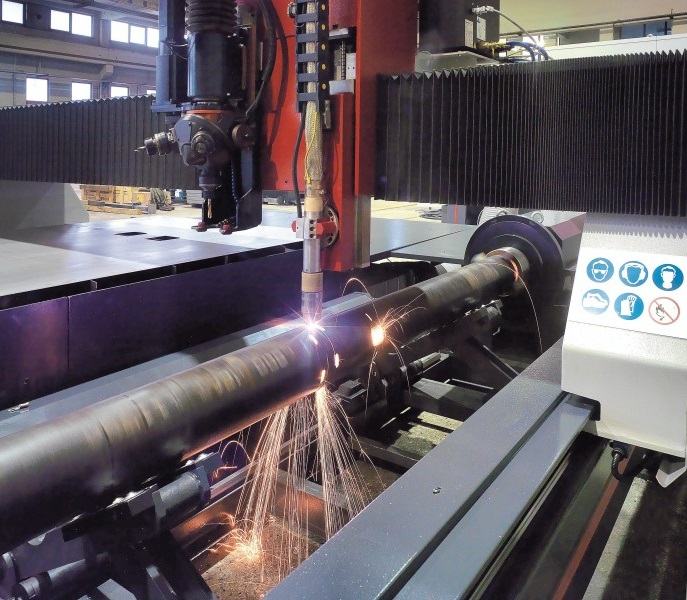

Designed for high accuracy plasma cutting the machine can be built in a wide variety of configurations with 2 or more plasmas, bevel cutting, marking devices and even drilling and tapping heads.

Technical specifications



Description

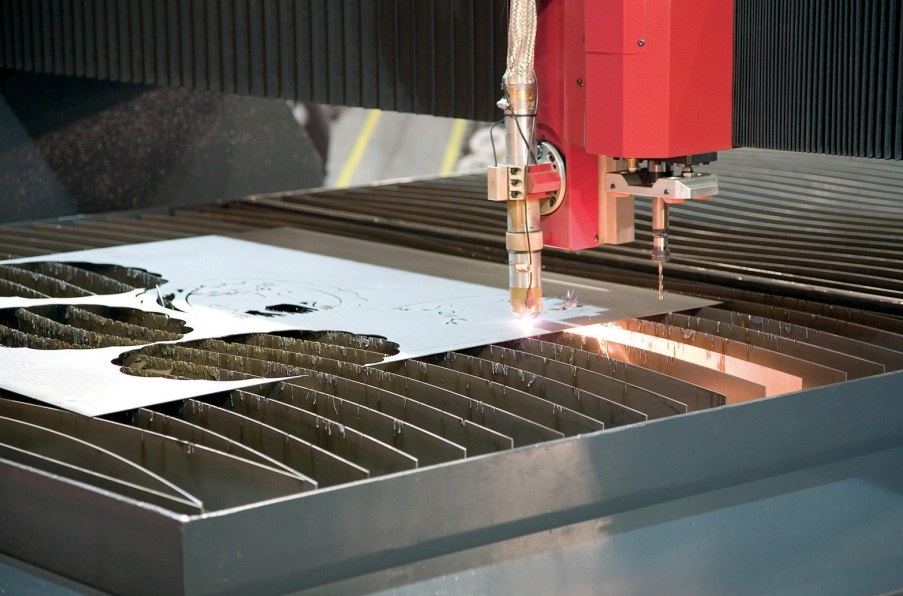

HIGH ACCURACY PLASMA

The machine can be built in a wide variety of configurations

BEVEL CUTTING

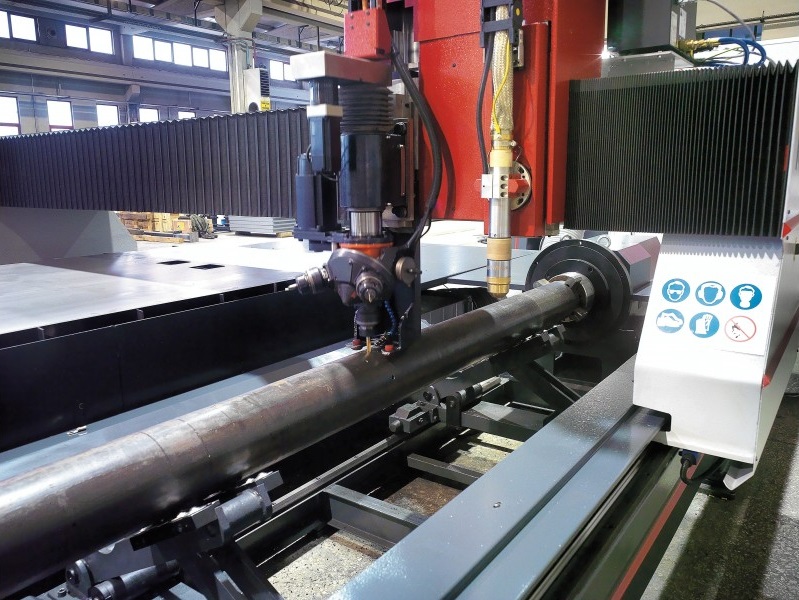

Marking devices and even drilling and tapping heads.

GENERAL PROPERTIES

True Hole Technology requires a HyPerformance Plasma HPRXD® auto gas system along with a True Hole enabled cutting table, nesting software, CNC, and torch height control.

Option:

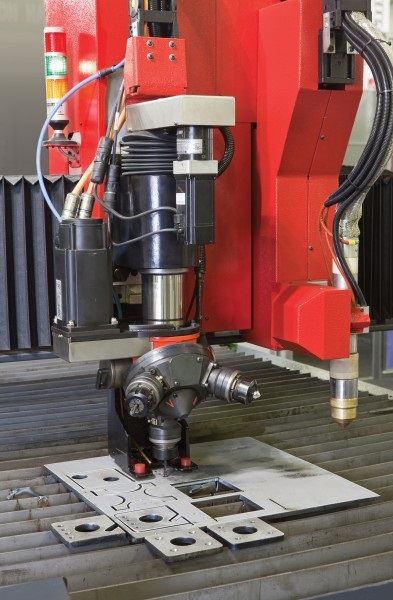

  • Single drilling unit.
  • Multi drilling unit.
  • Bevel cut
  • True hole cutting.

TECHNICAL SPECIFICATIONS

  • High precision plasma cutting technology
  • High mechanical accuracy to:±O.1mm
  • Axis positioning speed:30m/min
  • X and Y axis travel on precision line arrail guides
  • Torch-height travel with ball screws on dual linear guides
  • Fast and accurate positioning with AC brushless servo motors:
    Y-axis: dual synchronised servo drives
    X-axis: single servo drive
  • Cutting table independently constructed of bridge and machine frame to maintain positional accuracy under any table-load
  • Patented crash protection on torch®
  • Automatic torch height control
  • Sectional cutting table with automatic fume extraction system
  • Windows® based CNC unit
  • Automatic nesting software
  • Remote control option onl arge tables
  • Optional dust and fume collector devices conforming to safety regulations
