Description
MULTI PROCESS APPLICATIONS

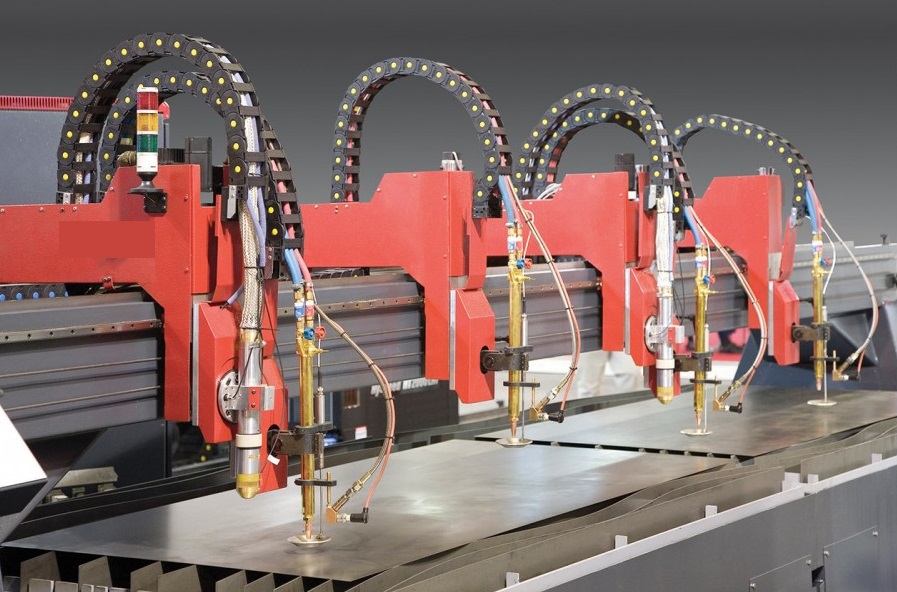

PROD-NC78 machine with its special designed bridge construction have unlimited feature as multitorch and multi process application. With that option customers are free for any application requested.
SLIDE CARRIER
With Specially designed side slide carrier system, prevent distortion effects and keep accuracy also for very long machine rails. Slide Carrier gives trouble free Oxy-fuel cutting up to 300 mm and allows machine length up to 60 meters and more.
GENERAL PROPERTIES
Option:
- Single drilling station is able to workup to 6 mm diameter tool. Movement in Z axis is made by pneumatic piston. It is working according preset timings. Total stroke of tool is op to 80 mm.
- Multi drilling station is able to workup to 20 mm diameter tool. Movement in Z axis
is made by additional CNC controlled axis. Working cycle is programmable. System has ability to work with up to 6 different tools and ability of tapping. Tapping capacity is up to M16. - The PRODEFFI Plasma bevel unit is used for accurate beveling on flat materials. Unit is fully programmable to cut parts that have both bevel and straight cuts. With its high speed tilt and tilt design system minimize bevel transition time and improves contour quality. Baykal magnetic crash protection system and non contact initial height sensing, reduce maintenance requirements and keeps torch alignment safe during entire cut process.

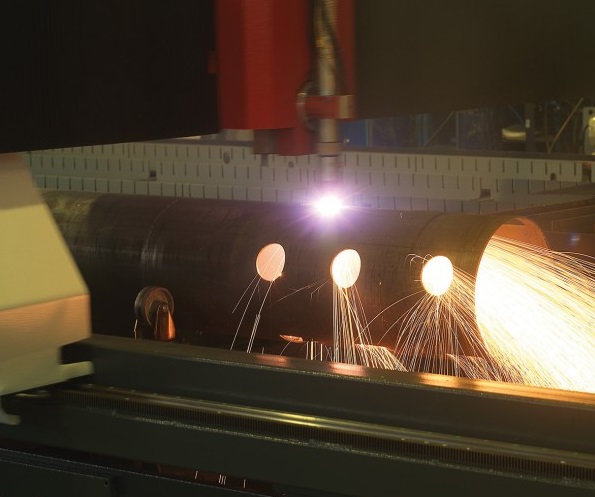

- PRODEFFI Tube cutting station is designed like add on device which is able to work with pipes and square/rectangular tubes. That unit is placed in cutting area side.
- PRODEFFI Oxy fuel cutting unit is fully CNC programmable unit with tilting ability up to 45°. With its auto cycle and auto height control, unit have capacity for oxy-fuel cutting up to 300 mm.
- Water tanks has auto level control.With its air flow level control has very short fill-up timing. Effective use for minimizing distortions due to heat effect.
TECHNICAL SPECIFICATIONS
- Availability of multi torch applications.
- Suitable for Oxy-fuel cutting up to 300mm
- Best combination of Precision and very thick process machine.
- High precision plasma cutting technology
- High mechanical accuracy to:±O.1mm
- Axis positioning speed: 30m/min
- X and Y axis travel on precision line arrail guides
- Torch-height travel with ball screws on dual linear guides
- Fast and accurate positioning with AC brushless servo motors:- Y-axis: dual synchronised servo drives
– X-axis: single servo drive - Cutting table independently constructed of bridge and machine frame to maintain positional accuracy under any table-load
- Patented crash protection on torch®
- Automatic torch height control
- Sectional cutting table with automatic fume extraction system
- Windows® based CNC unit
- Automatic nesting software
- Optional dust and fume collector devices conforming to safety regulations
