DE-L – GLASS DOUBLE EDGER LINE

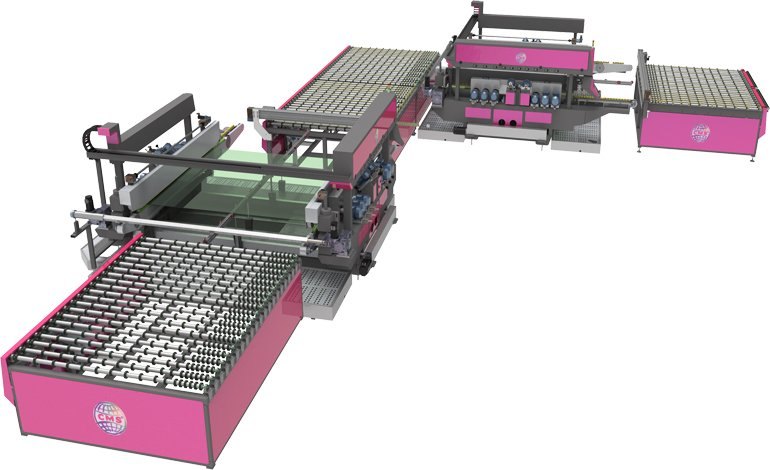

Glass double edger line includes two sets of straight-line glass double edgers and one 90° transfer table. It is used for edging and polishing the four parallel straight lines of the flat glass automatically.

Technical specifications

  • Fully automated glass edging system for flat glass
  • High speed glass edging and polishing with perfect quality
  • Excellent solution for glass door, shower door or glass balcony production
  • Extremely robust structural design



Description

HIGHLIGHTS

  • Fully automated glass edging system for flat glass
  • High speed glass edging and polishing with perfect quality
  • Excellent solution for glass door, shower door or glass balcony production
  • Extremely robust structural design

HOW IT WORKS?

Thanks to the automatic intermediate transfer conveyor, the two sides of the glass are automatically transferred to the other double edger machine for edging of the other two sides. In addition to the rough grinding, fine grinding and polishing can be done on the flat glass to make the desired size. The wheels are automatically controlled by the piston and thus allow for longer processing times. With servo motor driven technology the glass position can be tracked to see the wheel position. Optionally, glass recognition system (Opt. GRS) can be integrated for automatic glass size and thickness measuring.

FEATURES

  • 20+20 motors
  • Rough, fine edging and polishing
  • 90 degree glass transfer conveyor
  • Servo motor driven axis
  • Servo motor driven system
  • Recipe saver system
  • High speed glass processing
  • Automatic glass dimension measuring
  • Automatic glass thickness measuring
  • Touch screen control panel
  • Remote technical assistance
DE-L
20
25
30
Motor quantity 20+20 20+20 20+20
Maximum glass width 2000 mm 2500 mm 3000 mm
Minimum glass size 250×300 mm 250×300 mm 250×300 mm
Glass processing speed 0.5-12 m/min 0.5-12 m/min 0.5-12 m/min
Diagonal tolerance of glass processing ± 0.5 mm/m ± 0.5 mm/m ± 0.5 mm/m
Parallel tolerance of glass processing ± 0.1 mm/m ± 0.1 mm/m ± 0.1 mm/m
