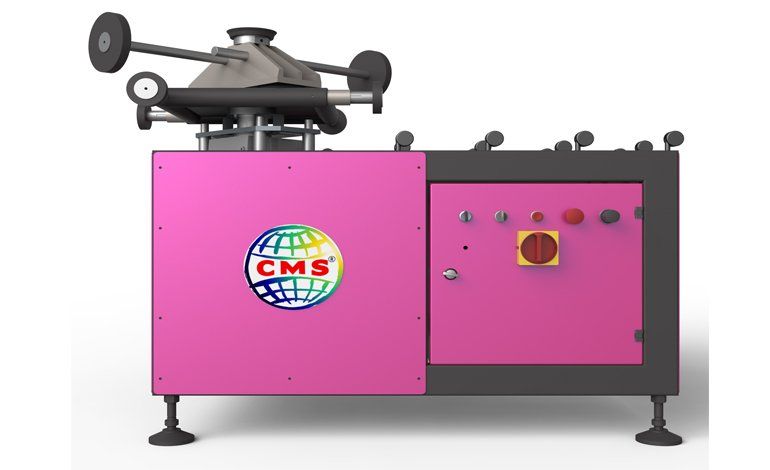

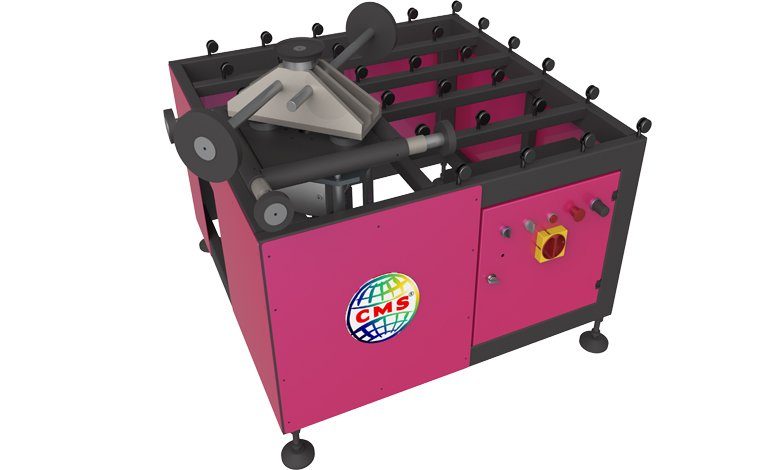

RTB – ROTARY TABLE – ADVANCED



Rotary table – advanced has the double suction plate which ensures the elements that are optimally secured during the sealing process of insulated glass units.

Technical specifications

  • Easy to use
  • Easy to transport, easy to install
  • Compact and space effective design
  • Extremely robust structural design



Description

HIGHLIGHTS

  • Easy to use
  • Easy to transport, easy to install
  • Compact and space effective design
  • Extremely robust structural design

HOW IT WORKS?

The fact that the table is the same height as the transport tracks means that the insulating glass units can be easily positioned and removed. With its four mode of turning program it can turn for 90°, 180°, 360° or shape glass. The sealed units are automatically lowered to the same
level with the table. There are four extendible supporting arms for large scale insulating glass and one auxiliary suction system for small insulating glass units also provided with the machine.

FEATURES

  • Heavy glass carrying
  • Four working mode (90º,180º,360º, shape glass)
  • Changeable working direction
  • Adjustable rotating speed
  • Adjustable arm system
TECHNICAL PARAMETERS
RTB2X2
Minimum glass size 200×200 mm
Maximum glass size 2000×2000 mm
MACHINE DIMENSIONS
RTB2X2
W 1225 mm
L 1225 mm
H 925 mm
