OMRM 117 – Triple Drilling Copy Router

Copy Router with Triple Drilling for Aluminum Profiles

Designed for copy milling and triple drilling of aluminum and PVC profiles.

Technical specifications

  • Power Supply : 380-400 V, 3 ph, 50-60 Hz
  • Total Electricity Values : 1,8 Kw, 3,8A
  • Motor KW : 1,1 Kw
  • Air Consumption : 2,2 lt/min
  • Air pressure : 6-8 Bar
  • Machine Height : 1450 mm
  • Machine Length : 1000 mm
  • Machine Width : 780 mm
  • Machine Weight : 110 Kg
  • Maximum Machinable Profile Height : 110 mm
  • Minimum Machinable Profile Height : 40 mm
  • Maximum Machinable Profile Width : 150 mm



Description


EASE OF USE

It enables copy-milling, triple arm drilling and drainage to be carried out on a single machine. In addition, the ease of use boosts efficiency in production.


ANTI-FRICTION MOTION SYSTEM

The movable milling head increases the shaft life by means of heat-treated shafts without friction by means of balls.

GENERAL PROPERTIES

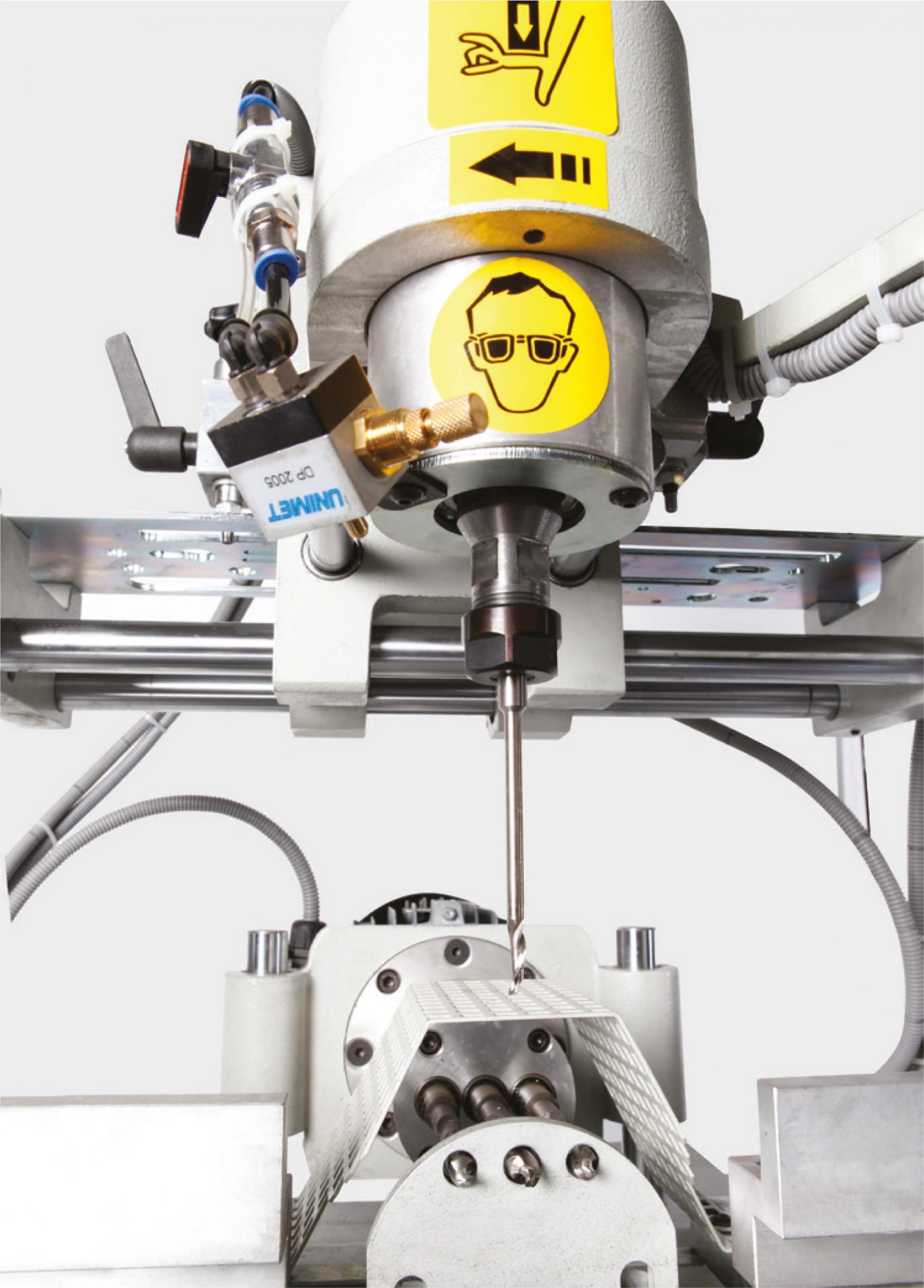

  • Two independent routing units, one horizontal and one vertical
  • Horizontal unit, three holes with fixed spacing can be drilled
  • Vertical unit can be used for the copy routing with the copying template
  • Movement on recirculating ball bearings, ensure great stability and precision to the head unit, making it possible to work on every kind of aluminium and PVC profiles
  • Smooth movement of units is carried out with shock-absorbers
  • Scale of copy-milling operation 1:1
  • Horizontal pneumatic clamping kit
  • Adjustable operation depth
  • 4-position rotating star-type depth adjustment device for copy-milling
  • Side length stop

Option:

  • Cooling system for aluminium profile processing

TECHNICAL SPECIFICATIONS

  • Power Supply : 380-400 V, 3 ph, 50-60 Hz
  • Total Electricity Values : 1,8 Kw, 3,8A
  • Motor KW : 1,1 Kw
  • Air Consumption : 2,2 lt/min
  • Air pressure : 6-8 Bar
  • Machine Height : 1450 mm
  • Machine Length : 1000 mm
  • Machine Width : 780 mm
  • Machine Weight : 110 Kg
  • Maximum Machinable Profile Height : 110 mm
  • Minimum Machinable Profile Height : 40 mm
  • Maximum Machinable Profile Width : 150 mm
