Description
ANTI-FRICTION MOTION SYSTEM

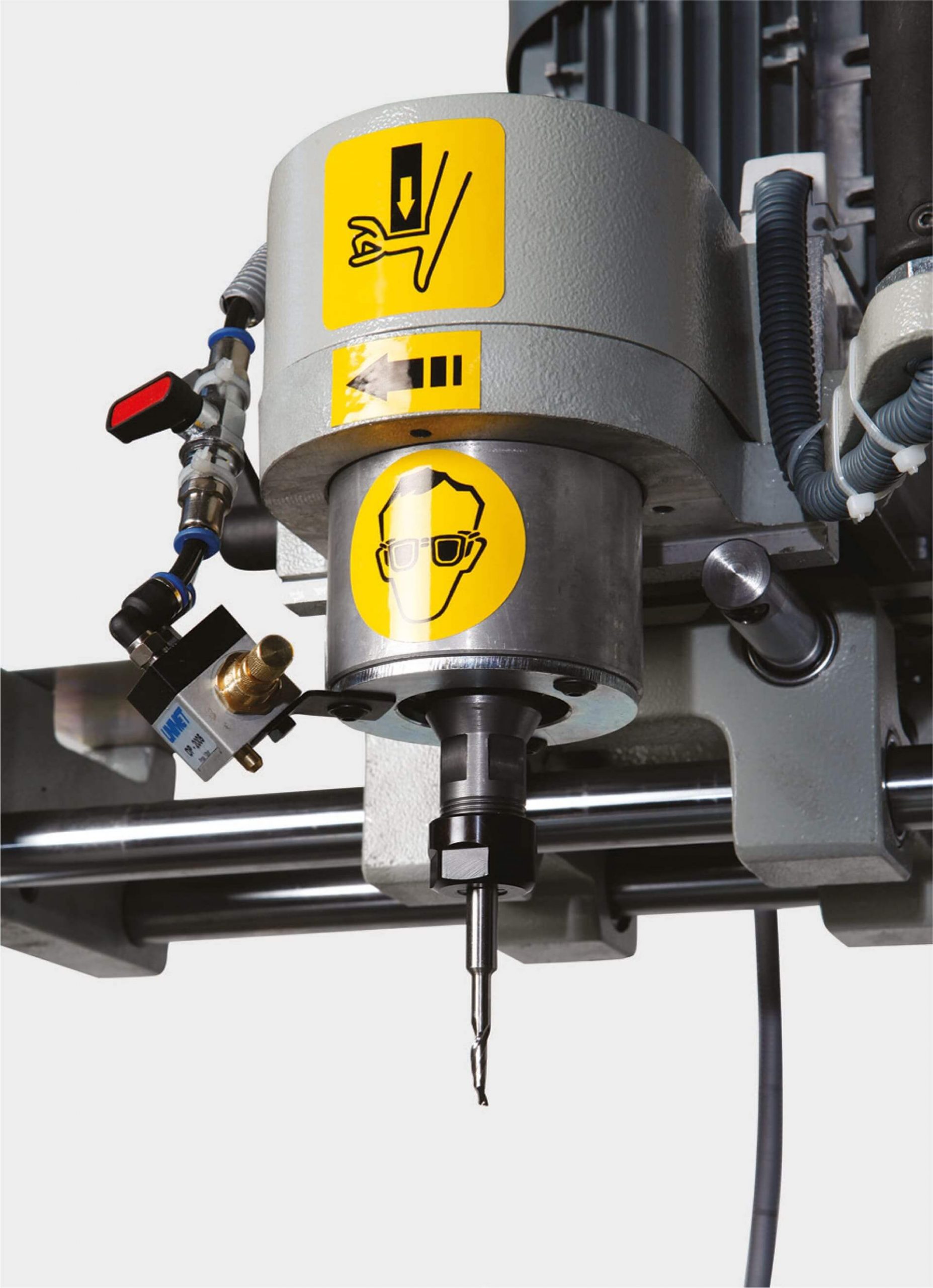

The movable milling head increases the shaft life by means of heat-treated shafts without friction by means of balls.
EASE OF USE
t enables copy-milling, triple arm drilling and drainage to be carried out on a single machine. In addition, the ease of use boosts efficiency in production.
MAXIMUM LIFE SPAN OF CUTTER
Drill life is prolonged by means of double-roll, triple drilling group and low speed engine.
GENERAL PROPERTIES

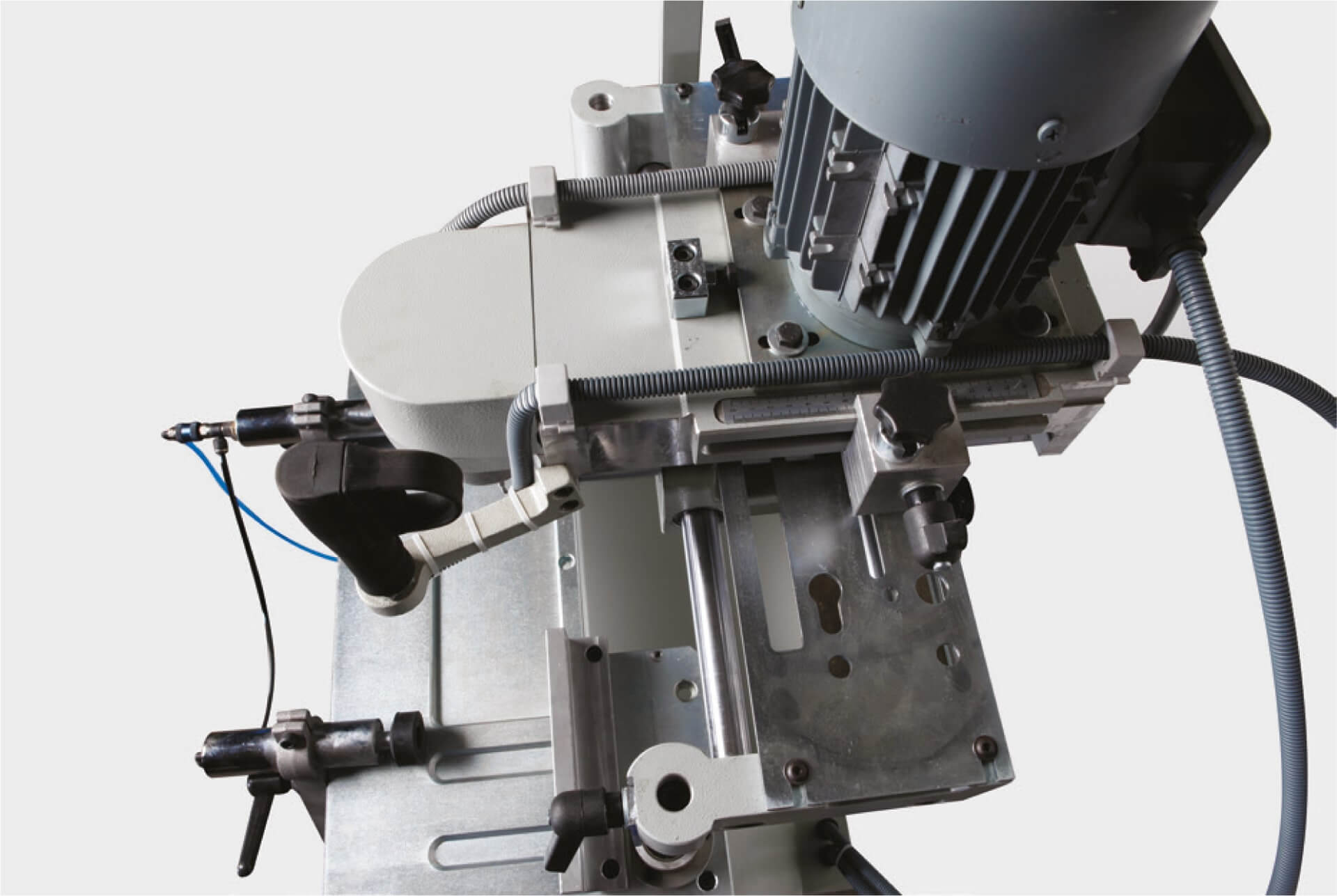

- Copy routing unit can be used with the copying template
- Movement on recirculating ball bearings, ensure great stability and precision to the head unit, making it possible to work on every kind of aluminium and PVC profiles
- Smooth movement of units is carried out with shock-absorbers
- Scale of copy-milling operation 1:1
- Horizontal pneumatic clamping kit
- Adjustable operation depth
- 4-position rotating star-type depth adjustment device for copy-milling
- Side length stop
Option:
- Cooling system for aluminium profile cutting
TECHNICAL SPECIFICATIONS
- Power Supply : 380-400 V, 3 ph, 50-60 Hz
- Total Electricity Values : 1,1 Kw
- Motor KW : 1,1 Kw
- Air Consumption : 9 lt/min
- Air pressure : 6-8 Bar
- Machine Height : 1530 mm
- Machine Length : 910 mm
- Machine Width : 770 mm
- Machine Weight : 120 Kg
- Maximum Machinable Profile Height : 120 mm
- Minimum Machinable Profile Height : 40 mm
- Maximum Machinable Profile Width : 120 mm
