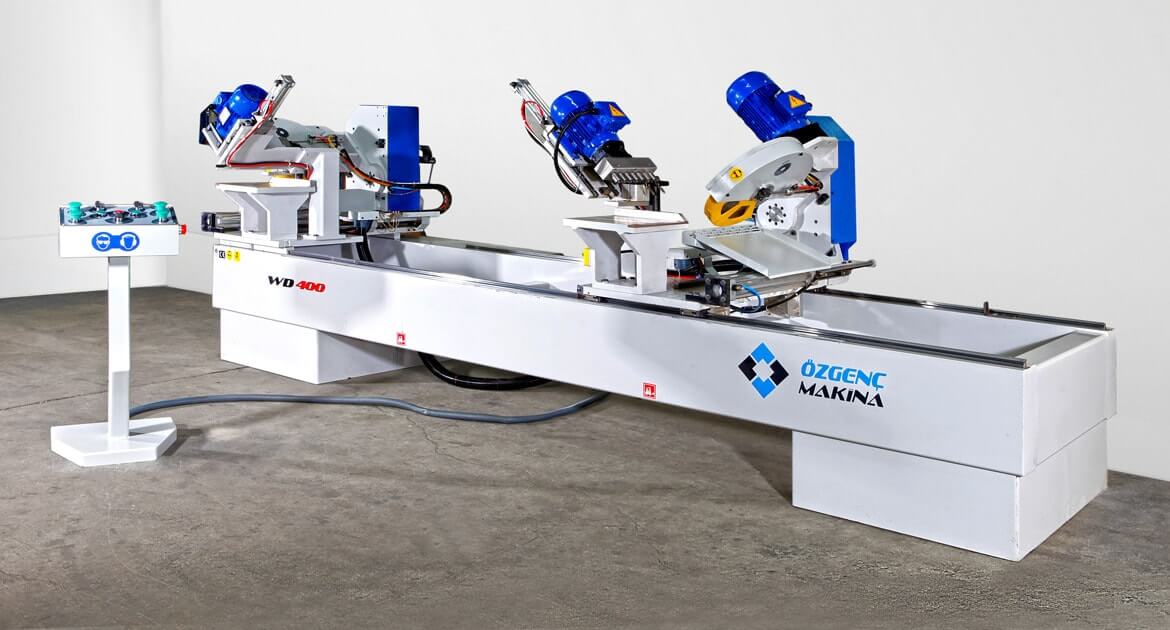

WD 400

45° Twin Circular Saw & Multi Hole Drilling Machine for Cutting Door Cases

After the door case is shaped and sized the heads are cut in a 45 degree angle and joint screwing holes are drilled by using WD-400.

Technical specifications

  • Power Supply : 380-400 V, 3 ph, 50-60 Hz
  • Total (kW) : 9 Kw, 17A
  • Air Consumption : 15 lt / m
  • Air pressure : 6 – 8 bar
  • Machine Height : 1500 mm
  • Machine Length : 3600 mm
  • Machine Width : 1600 mm
  • Machine Weight : 870 Kg

Categories: ,


Description

DESIGN FOR VARIOUS PURPOSES

Robust body design and cutting and drilling units that operate on linear skids.

PERFECT CUT AND ANGULAR DRILLING OPERATIONS

Horizontal and vertical tightening systems allows for perfect cutting quality at any angle from 0 to 45.

GENERAL PROPERTIES

  • 0 – 45 angle cutting and 45 degree drilling ability.
  • Left head stable,right head mobile
  • Durable body construction

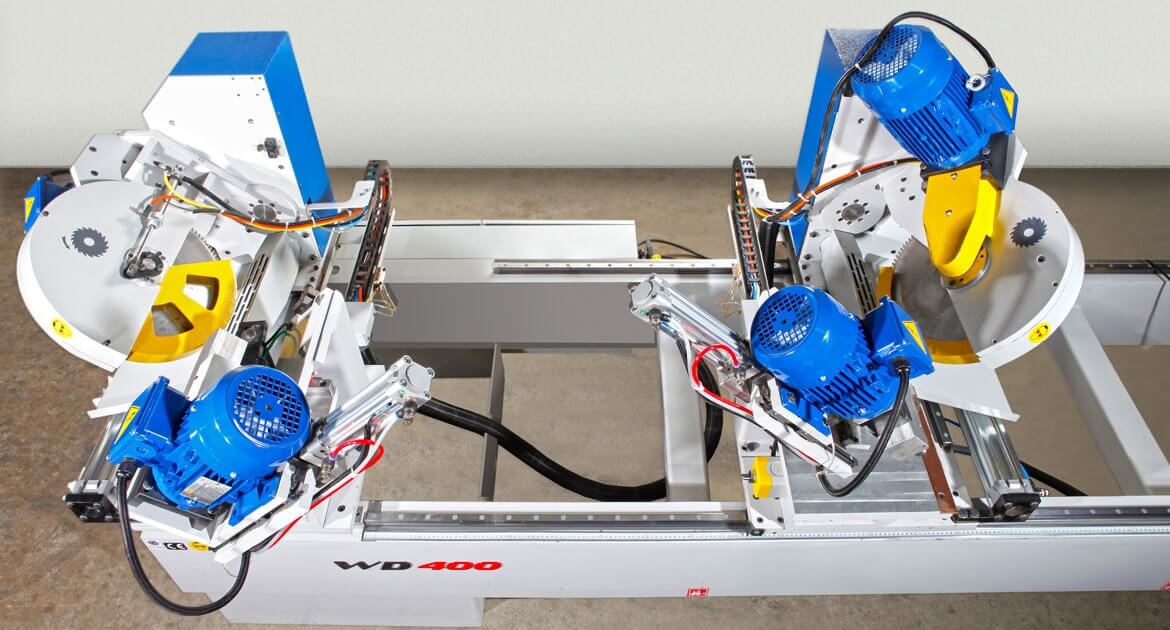

  • Cutting and drilling units mounted on high precision linear rail systems
  • The rotating head is manually adjusted

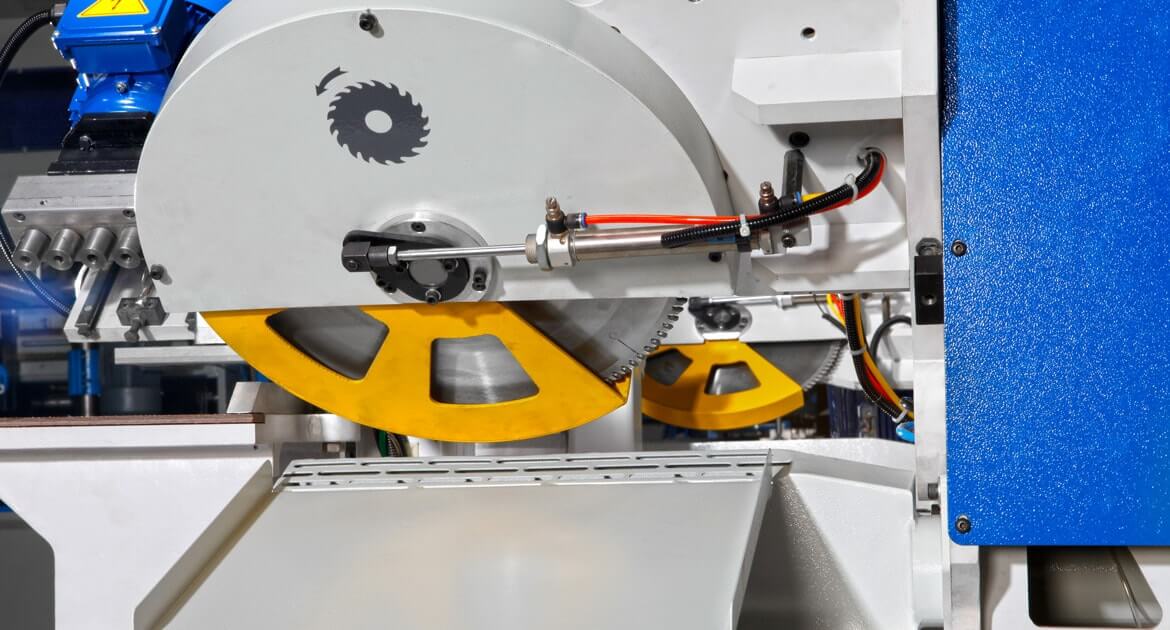

  • 2 x 400 circular cutting saws
  • 2 x #7 multi drilling heads
  • PLC Controlled
  • Pneumatic drilling and rail system
  • Vertical and horizontal clamping units
  • CE certified quality & operation standards

TECHNICAL SPECIFICATIONS

  • Power Supply : 380-400 V, 3 ph, 50-60 Hz
  • Total (kW) : 9 Kw, 17A
  • Air Consumption : 15 lt / m
  • Air pressure : 6 – 8 bar
  • Machine Height : 1500 mm
  • Machine Length : 3600 mm
  • Machine Width : 1600 mm
  • Machine Weight : 870 Kg
