Description
EASE OF USE
Upon pressing of a door case, it automatically sizes and sandpapers lamp spots, wicks and casings at one time.
FLEXIBLE OPERATIONS

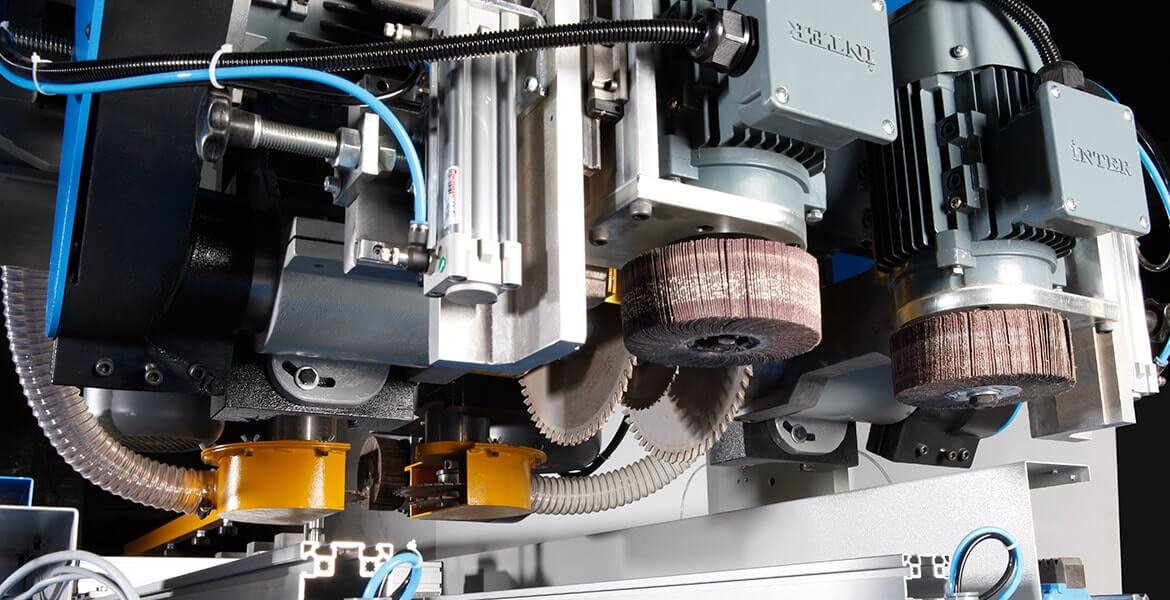

Equipped with 2 vertical and 2 horizontal engines. In this way, it allows flexible operation in 2 axes.
GENERAL PROPERTIES
- After sandwich door panel is producesd the side edge lines,trimming lines,rabbet edges and width can be cut witg 6-8 milling saws automatically.
- Produces 17sec. / m doorframe length.
- 2 vertical 2 horizontal motors
- Width adjusted manually
- 10-400mm frame width operation ability
- Rabbet edge height and trimming height can be adjusted.

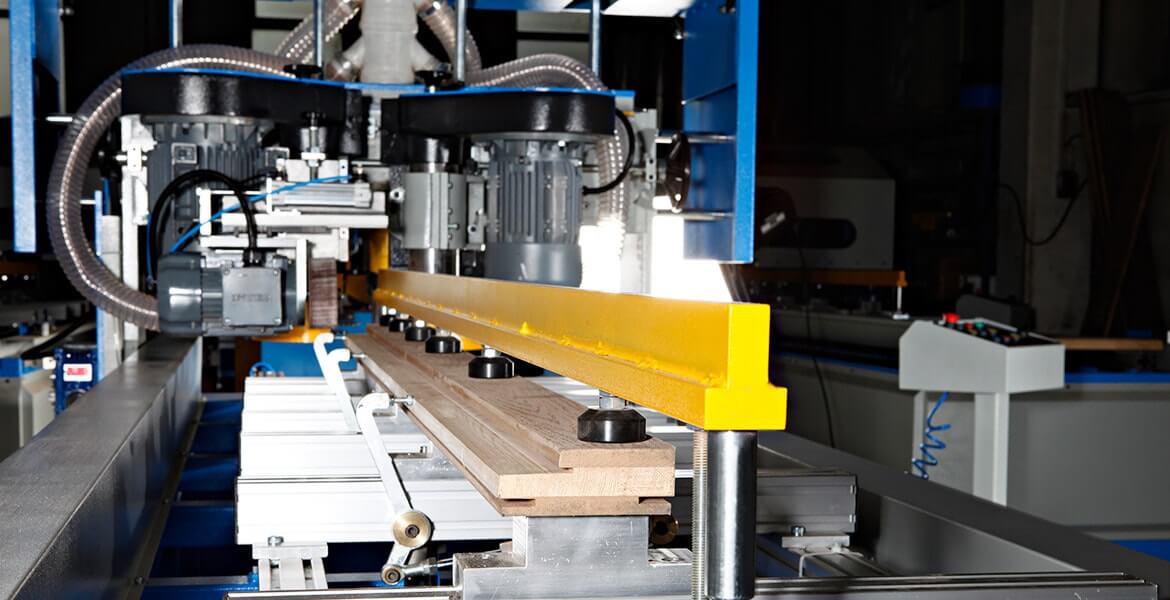

- Upper clamp pressing system provides very strong holding
- PLC computer opreation
- 6 or 8 saws
Optional:
- Automatic width adjusting unit
- Emery ( Sandpapering) Unit
TECHNICAL SPECIFICATIONS
- Power Supply : 380-400 V, 3 ph, 50-60 Hz
- Total (kW) : 17 Kw, 32A
- Air Consumption : 15 lt / m
- Air pressure : 6 – 8 bar
- Machine Height : 1600 mm
- Machine Length : 5200 mm
- Machine Width : 1500 mm
- Machine Weight :1250 Kg
