WD 600

Automatic Door Panel Cutting Machine

WD-600 is able to size ( cut ) four sides of the door with high precision in a single operation.

Technical specifications

  • Power Supply : 380-400 V, 3 ph, 50-60 Hz
  • Total (kW) : 7,5 Kw, 10A
  • Air Consumption : 100 lt / m
  • Air pressure : 6 – 8 bar
  • Machine Height : 1790 mm
  • Machine Length : 3970 mm
  • Machine Width : 2170 mm
  • Machine Weight : 1300 kg



Description

SIZING IN ONE SINGLE OPERATION

2 mins. and 50 sec. for rabbeted door sizing in 4 corners. Maximizes efficiency in production as it takes 2 mins to size any pommel door in 4 corners.

ROBUST TECHNICAL INFRASTRUCTURE

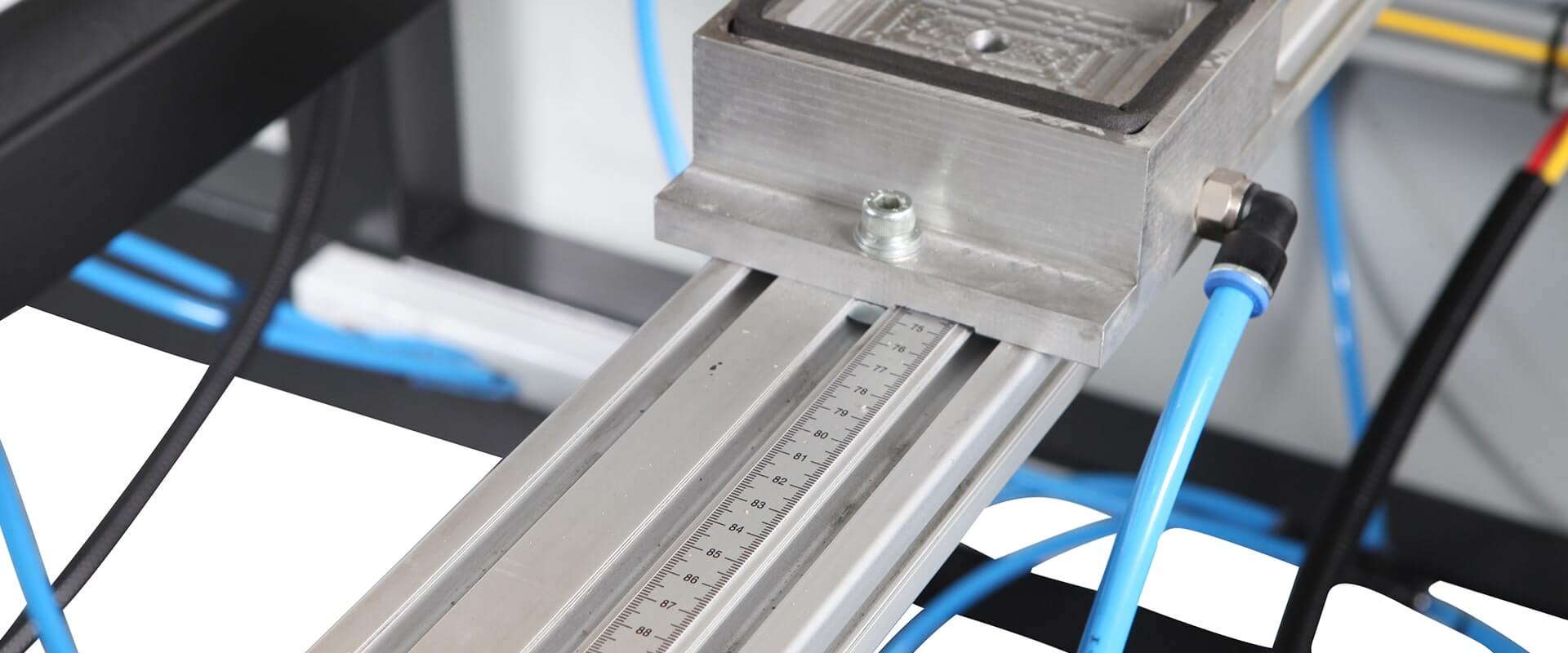

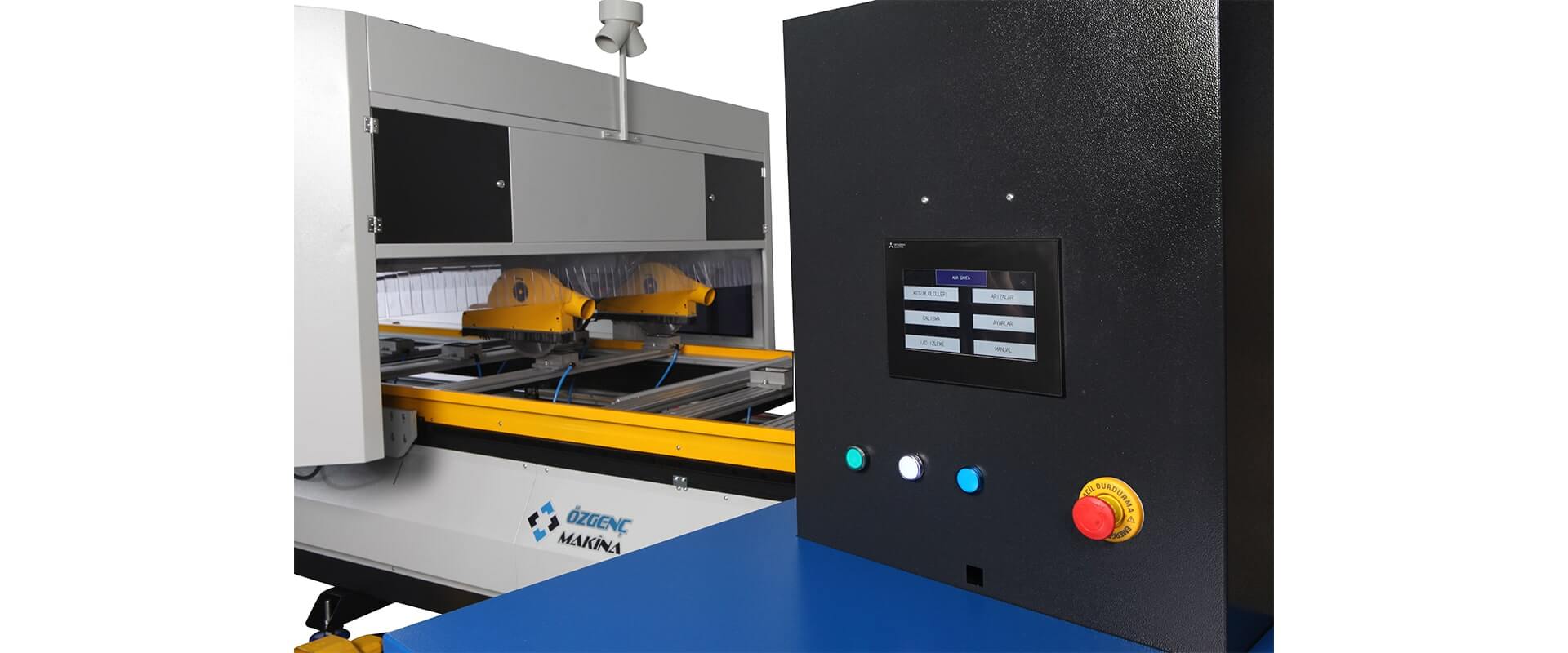

GEV 45 m3. oil-type vacuum systems, robust part fixing and the touch screen boost performance in production.

AN ENGINE STRUCTURE THAT FITS FOR ANY CUTTING OPERATION

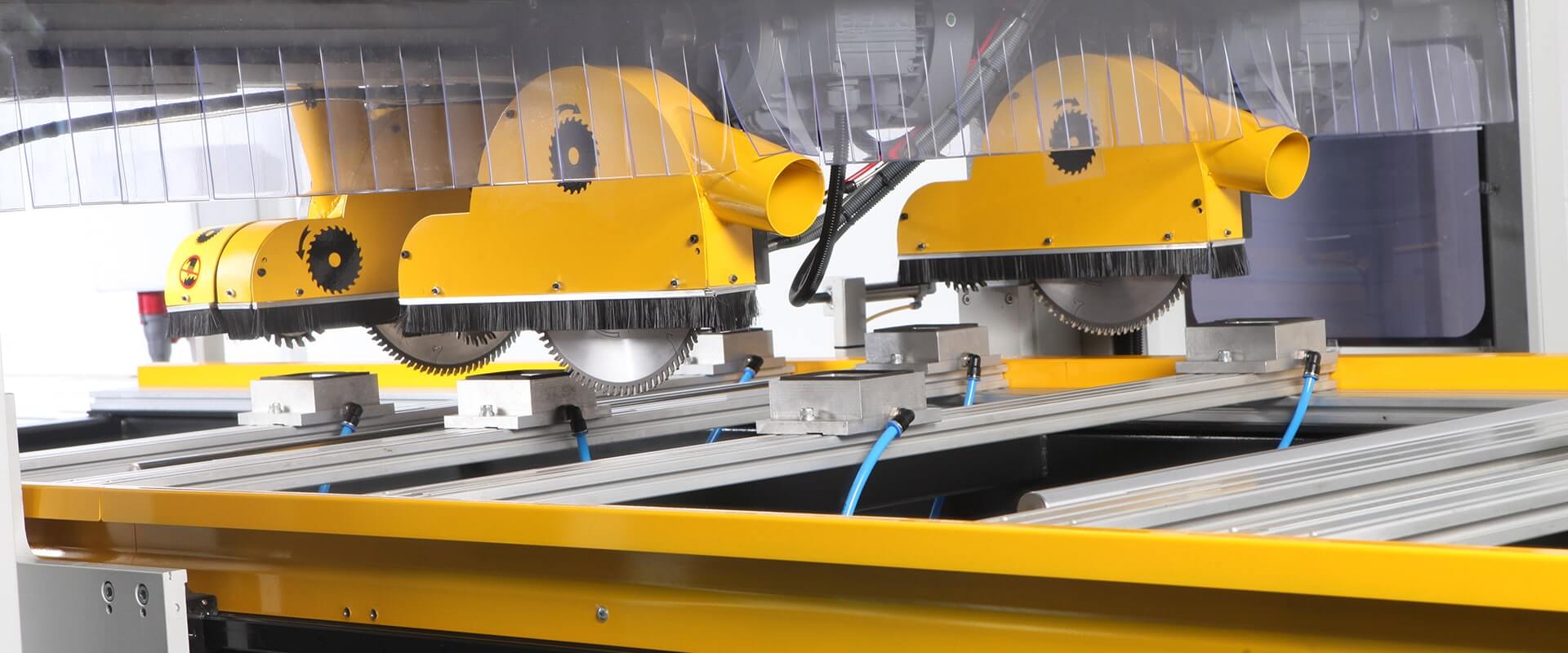

It offers sizing with 1 saw for the door length and 2 for the door width. Each cutting group comprises a main cutting engine and a saw.

GENERAL PROPERTIES

  • Ability to cut four sides of the door with high precision
  • Optional Keyhole Hinge Slot Router Unit
  • 2mins 40 seconds for cutting rebate doors
  • 2mins for cutting flush doors
  • Embedded Schmalz/DVP vacuum motors dont require external air compressors
  • Mitsubishi or Omron Automation systems
  • Linear guideways in all axis
  • Manual lubrication
  • Scoring saws for high quality edges
  • Dust output already prepared for connection

TECHNICAL SPECIFICATIONS

  • Power Supply : 380-400 V, 3 ph, 50-60 Hz
  • Total (kW) : 7,5 Kw, 10A
  • Air Consumption : 100 lt / m
  • Air pressure : 6 – 8 bar
  • Machine Height : 1790 mm
  • Machine Length : 3970 mm
  • Machine Width : 2170 mm
  • Machine Weight : 1300 kg
