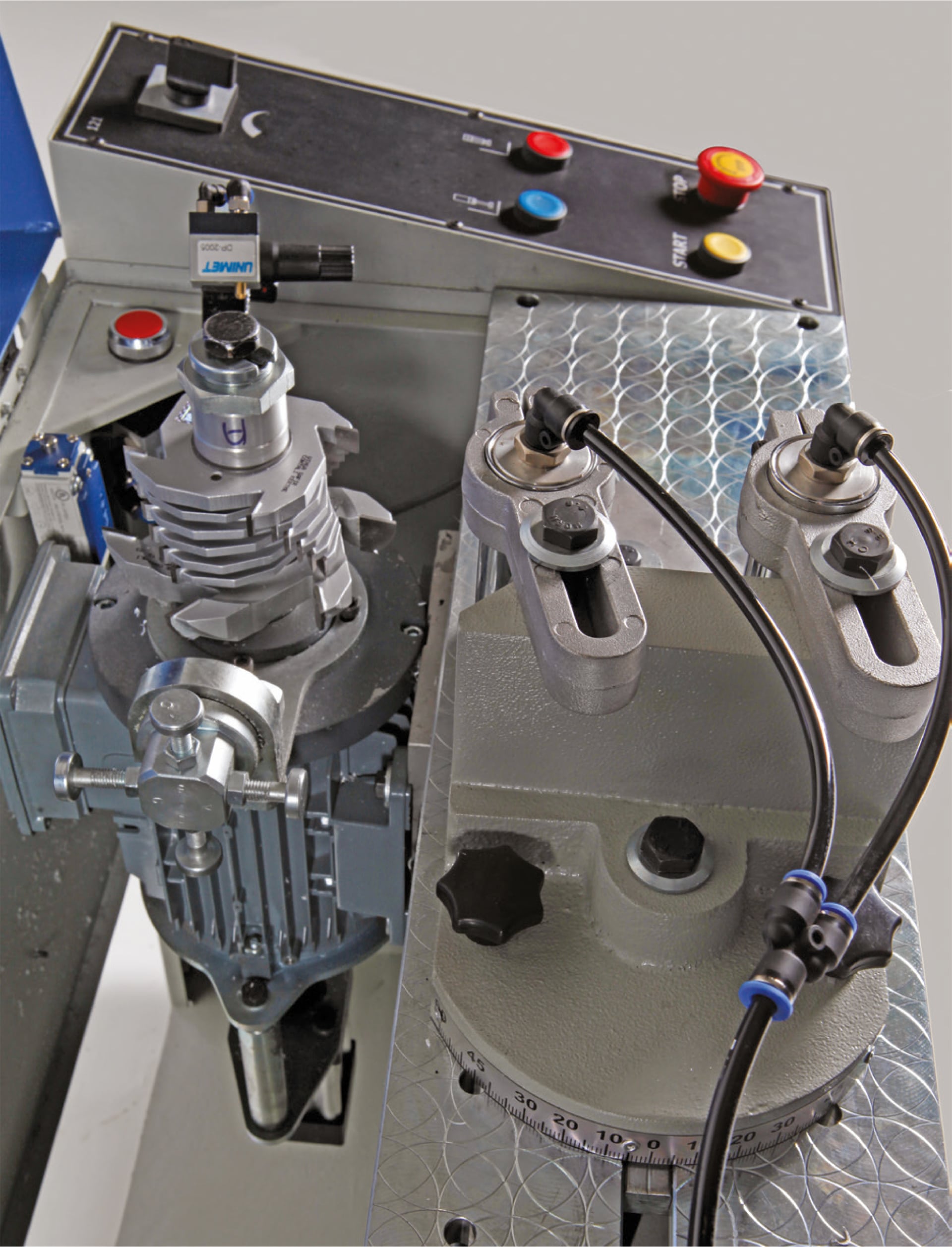

OMRM 121 ALU – Automatic End Milling Machine

Automatic End Milling Machine for Aluminum Profiles

Designed for end milling of PVC and aluminum profiles.

Technical specifications

  • Power Supply : 380-400 V, 3 ph, 50-60 Hz
  • Total Electric Values : 1,1 kW
  • Motor KW : 1,1 kW
  • Air Consumption : 2,2 lt/min
  • Air pressure : 6-8 bar
  • Machine Height : 1110 mm
  • Machine Length : 1310 mm
  • Machine Width : 850 mm
  • Machine Weight : 110 Kg
  • Maximum Machinable Profile Height : 90 mm
  • Maximum Machinable Profile Width : 90deg = 120 mm, 45deg = 90 mm
  • Sleeve Diameter : Ø30
  • Maximum Blade Width : 140 mm



Description

MULTIPLE NOTCHING DEPTH

With the rotating adjustment mechanism, the depth of the blade entry to the profile is adjusted without the need to shift the blade group.

SERIAL BLADE REPLACEMENT

When working with a different profile, the blade can be quickly changed with the help of a button.

CUSTOM-PROCESSED TRAY AND SUPPORT SYSTEM

Thanks to the specially processed table and the support system, which prevents profile shifting, it allows the profile to be adapted at different angles.

GENERAL PROPERTIES

  • Cutting range +45° / -45° and intermediate degrees
  • Automatic working cycle
  • Adjustable cutting speed with regulator on control panel
  • Vertical pneumatic clamping kit
  • Pneumatic rapid blade change system allows to quickly replace milling cutter groups when making profile system changes
  • 4-position rotating star-type stop
  • The machine can work with adjustable reference shoulders from –45° to +45° degrees, including all intermediate angles
  • Additional fixing of profile by a side stop
  • Special channel in stop plate is made for the best fixing of profile
  • Strengthen engine bearing axle
  • Special storage section for milling cutter holders
  • Profile supporting arm
  • 2 items of cutter holders

Option:

  • Hydropneumatic and cooling systems for aluminium profile cutting

TECHNICAL SPECIFICATIONS

  • Power Supply : 380-400 V, 3 ph, 50-60 Hz
  • Total Electric Values : 1,1 kW
  • Motor KW : 1,1 kW
  • Air Consumption : 2,2 lt/min
  • Air pressure : 6-8 bar
  • Machine Height : 1110 mm
  • Machine Length : 1310 mm
  • Machine Width : 850 mm
  • Machine Weight : 110 Kg
  • Maximum Machinable Profile Height : 90 mm
  • Maximum Machinable Profile Width : 90deg = 120 mm, 45deg = 90 mm
  • Sleeve Diameter : Ø30
  • Maximum Blade Width : 140 mm
