WD 450

Double Miter 45°/90° Twin Saw & 12 Pin Hole Drilling Unit

Technical specifications

  • Sawblade Diameter: 450mm / 500mm
  • Cutting Motor Rev: 3000 RPM
  • Cutting Sawblade Motor Rev: 4000 RPM
  • Cutting Motor Power: 3 KW
  • Drilling Motor Power: 0.75 KW
  • Min. – Max. Cutting Lenght: 670 – 2800 mm
  • Maximum Cutting Lenght: 225×95 mm / 240×110 mm
  • Maximum Cutting Lenght: 285×75 mm / 310×100 mm
  • Maximum Cutting Lenght: 395×50 mm / 420×50 mm
  • Electricity: 380-400V, 50hz, 3 phase
  • Air Pressure: 6 Bars

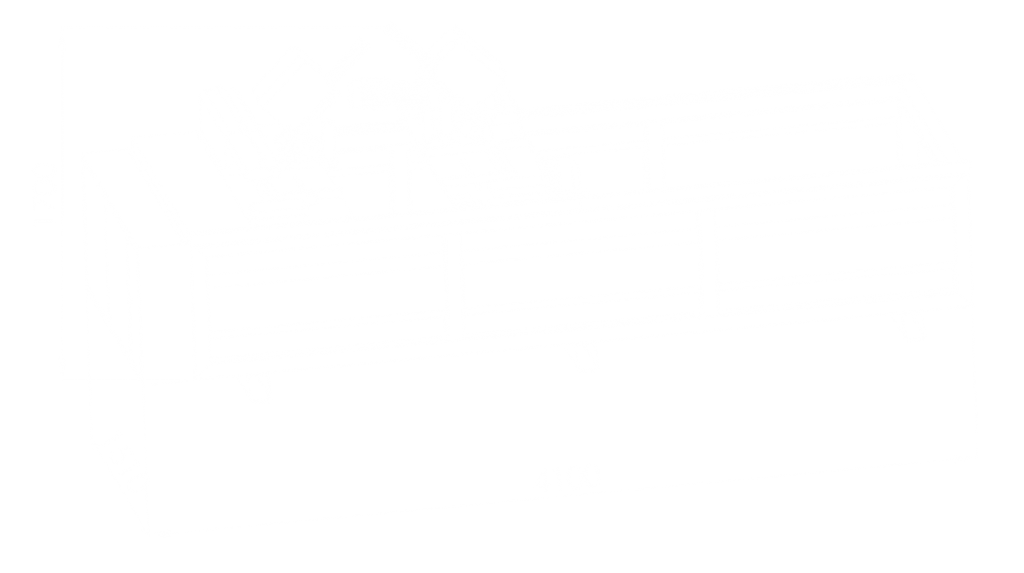

  • Length: 4100 mm
  • Width: 1510 mm
  • Height: 1700 mm
  • Weight: 1200 kg



Description

GENERAL PROPERTIES

  • 4 motors in total for 2 holes drilling and 2 cutting.
  • Easily cuts the frame profiles up to 200 mm width.
  • Completes all the operations of the door frame in 60 seconds.
  • Drilling unit consisting of 12 tools
  • Automatic printing system
  • Both cutter heads lie automatically at 45 and 90 degrees.
  • Optional: Automatic dimensioning

TECHNICAL SPECIFICATIONS

  • Sawblade Diameter: 450mm / 500mm
  • Cutting Motor Rev: 3000 RPM
  • Cutting Sawblade Motor Rev: 4000 RPM
  • Cutting Motor Power: 3 KW
  • Drilling Motor Power: 0.75 KW
  • Min. – Max. Cutting Lenght: 670 – 2800 mm
  • Maximum Cutting Lenght: 225×95 mm / 240×110 mm
  • Maximum Cutting Lenght: 285×75 mm / 310×100 mm
  • Maximum Cutting Lenght: 395×50 mm / 420×50 mm
  • Electricity: 380-400V, 50hz, 3 phase
  • Air Pressure: 6 Bars
  • Length: 4100 mm
  • Width: 1510 mm
  • Height: 1700 mm
  • Weight: 1200 kg
