Description
PRECISE CUTTING
It carries out all operations related to door and safe in one place, and in a fast, practical and standard way.
ONE SINGLE MACHINE FOR ALL OPERATIONS
You can perform all the features required in door processing quickly from a single machine.
OPTIONAL AND TAILOR-MADE SETS

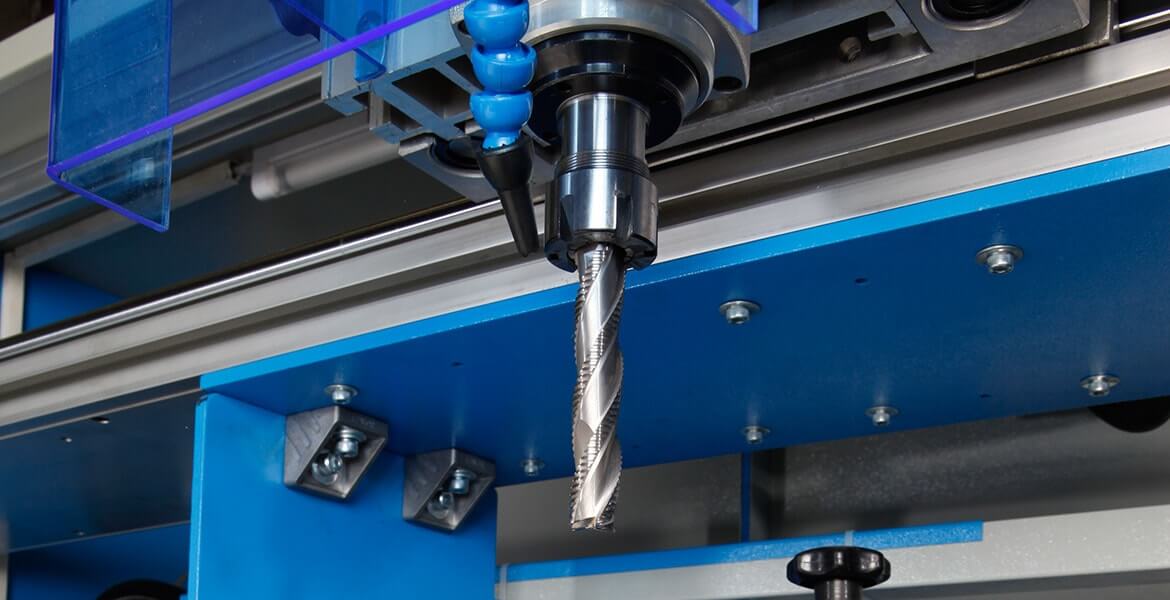

Specially designed high-strength tips are available.
GENERAL PROPERTIES

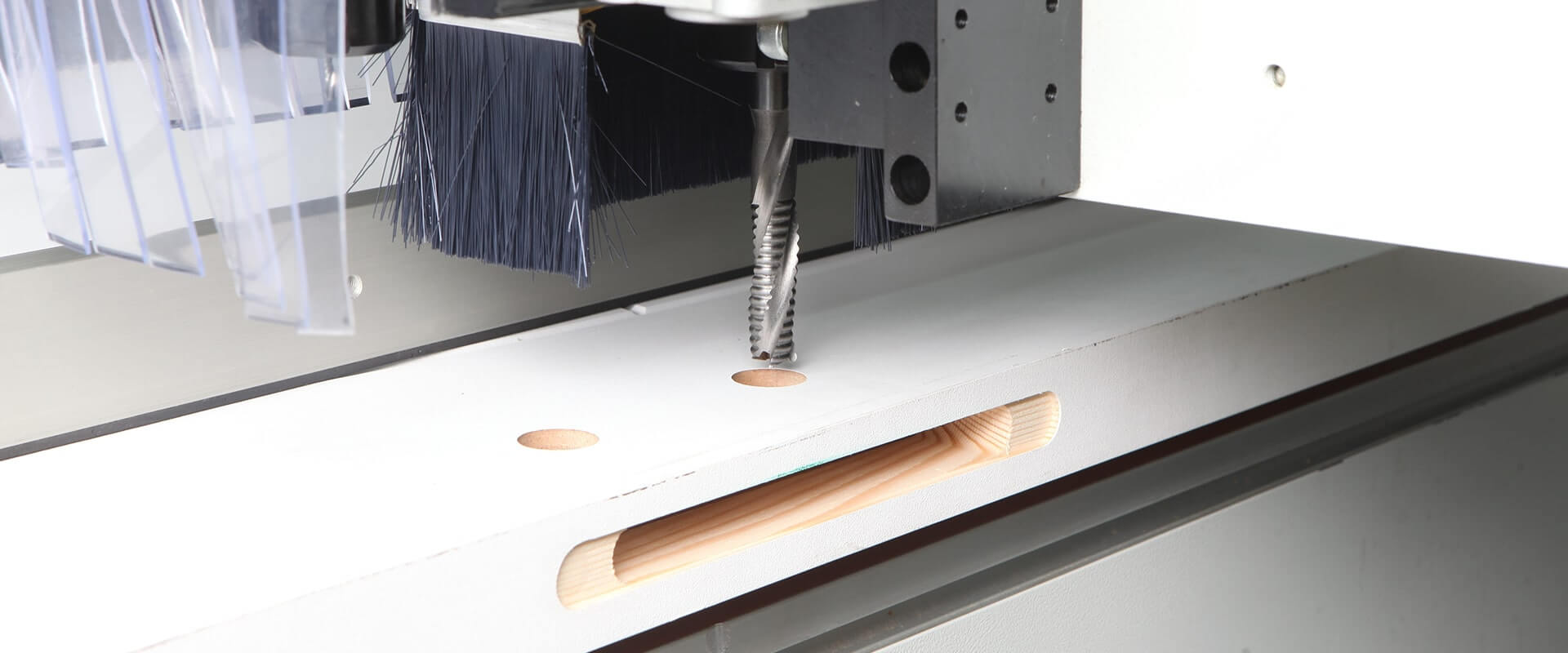

- Door keyhole routing function

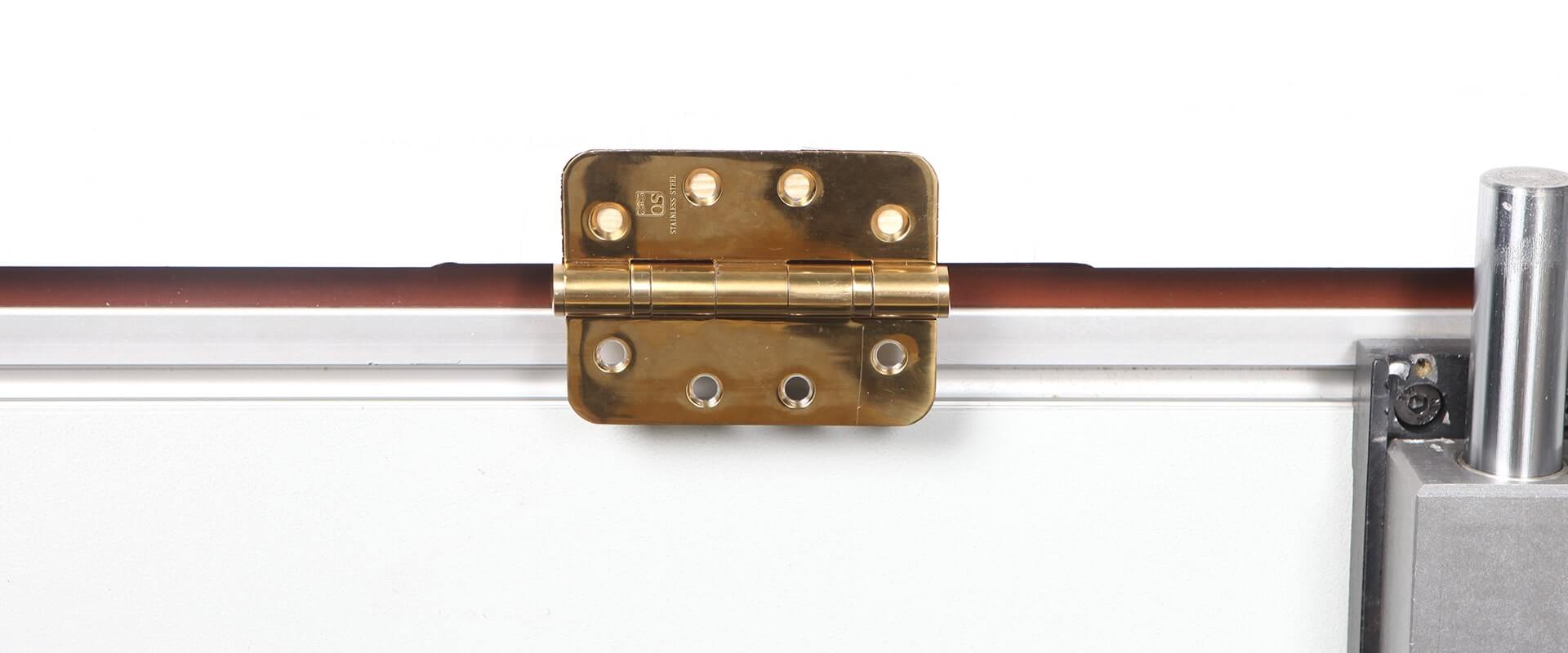

- Door hinge slot routing function
- Doorcase hinge slot routing fuction
- Doorcase lock slot routing fuction
- Very clean door installation procedure without filings
- Easy door installation because of all holes opened according to same mould
- All operations of the door ( keyhole,lockhole,hinge slot,plate slot) and doorcase (keyhole,hinge slot) finished with single machine.
TECHNICAL SPECIFICATIONS
- Power Supply : 380-400 V, 3 ph, 50-60 Hz
- Total (kW) : 3 kW, 2,2A
- Air Consumption : 70 lt / m
- Air pressure : 6 – 8 bar
- Machine Height : 1690 mm
- Machine Length : 2081 mm
- Machine Width : 1062 mm
- Machine Weight : 560 kg
