AS1 A type table Single head numerical crimping machine

For crimping aluminum doors and windows.

With our digital angle press, it is no longer necessary to change knife sets. Therefore, frames and sashes, but also profile combinations, can easily be produced one after the other. This simplifies the process considerably and has a positive influence on the course of the process.

  • CNC controlled crimping
  • Automatic knife positioning
  • Crimping depth adjustable by profile
  • Parameter memory by profile type
Categories: ,


Description

FEATURES

  • Electronic adjustment of crimping pressure
  • 14 servo-controlled axes
  • All axes are equipped with ball bearings
  • Electronically controlled brake pressure
  • The maximum knife stroke is 55 mm

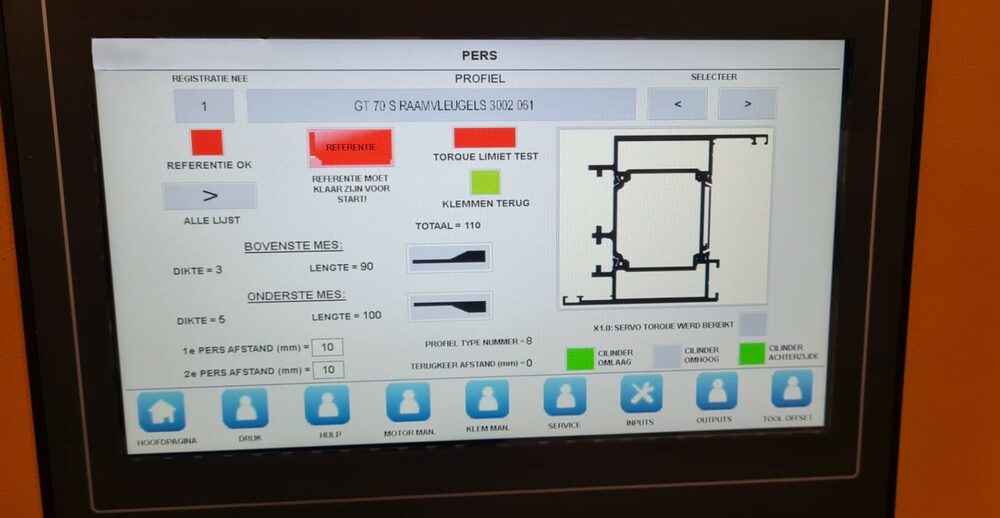

  • 10-inch touchscreen
  • The best solution for crimping your windows.

SPECIFICATIONS

  • Profile height: 60 – 200mm
  • Air pressure: 7 – 8 bar
  • Pressing force KN: 68
  • Weight: ± 1,200 kg
